介绍
在一个 柴油发电机组, 你必须检查活塞环的磨损情况才能保持发动机正常工作. 磨损的环会减少压缩并消耗更多的油. 通过在为时已晚之前轻松识别环的磨损情况并正确更换它们，您可以挽救发动机.
柴油发电机活塞环磨损的症状
活塞环的磨损可以通过发动机的性能和排气状况来识别.
常见症状包括:
- 减少发动机压缩
- 使用较多的润滑油.
- 蓝色或白色排气烟
- Lower the output of the 发电机功率.
- 曲轴箱压力高
活塞环磨损的情况, 活塞与缸壁密封性弱. 燃烧的气体溢出到曲轴箱中. 这种情况称为漏气. 它降低了发动机的效率和功率 .
还可以看到机油流入燃烧室. 这会导致空气冒烟并浪费油.
如果出现此类迹象, 您必须立即检查活塞环.
柴油发电机活塞环磨损的原因
更换活塞环之前, 你必须知道原因. 这可以用来避免故障再次发生.
常见原因包括:
- 润滑不良
- 发动机油被污染
- 发动机温度高
- 有害物质进入进气系统.
- 重负载，长期运行.
气缸通过活塞环上下移动的动作进行工作. 这种磨损是持续摩擦的结果.
如果润滑不良, 摩擦力大，磨损快. 环面也被脏油损坏. 磨损也受到操作条件的影响. 活塞环的寿命受发动机负载的影响, 燃油质量和环境
应定期检查，以确保在对发动机造成严重损坏之前注意到磨损.

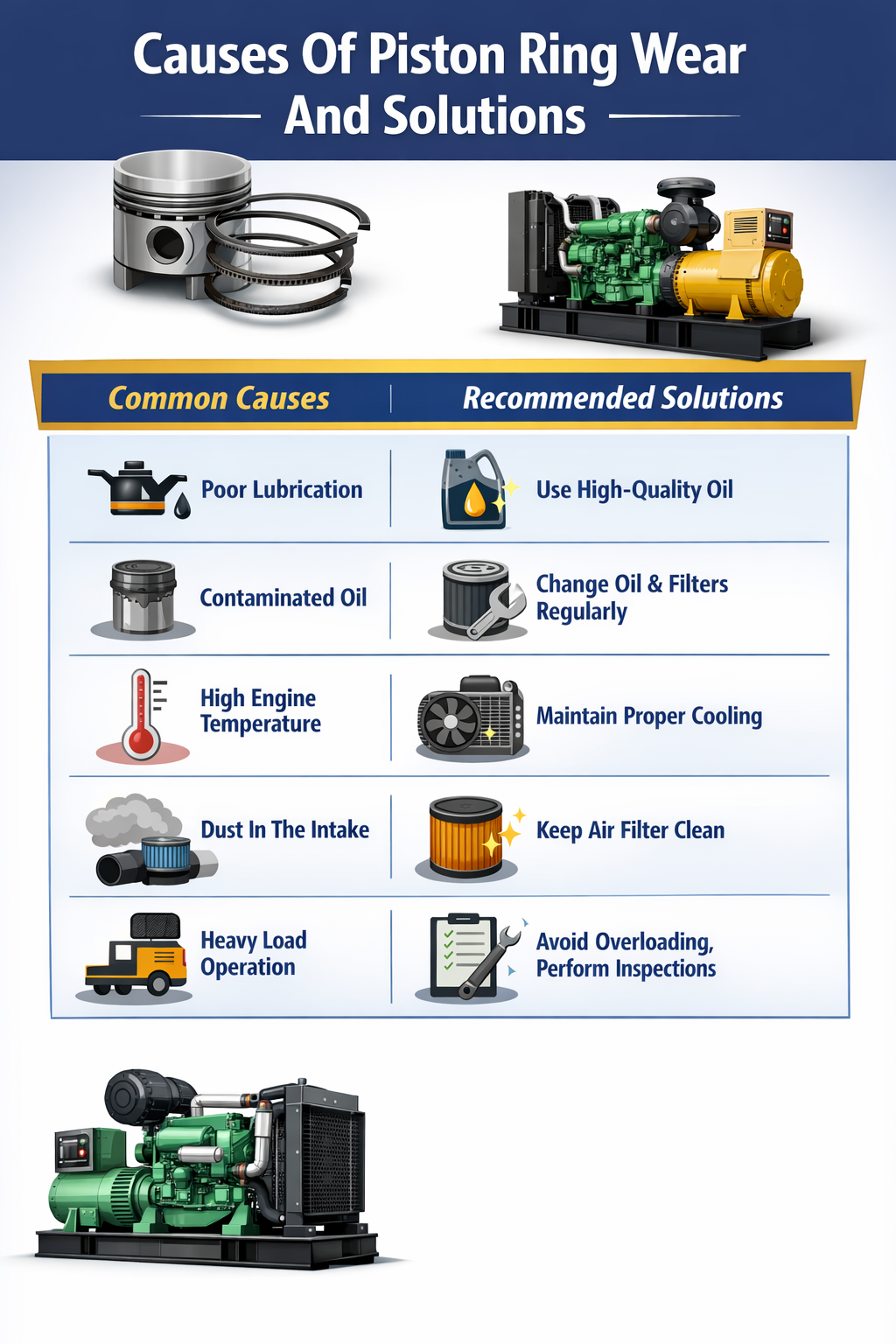

活塞环磨损的常见原因
确定活塞环磨损的方法
您应执行适当的检查程序以确定活塞环的磨损情况.
目视检查
首先是取出气缸的活塞总成.
然后检查活塞环面.
寻找这些标志:
- 戒指佩戴不平衡.
- 划痕或刻痕
- 环边破损
- 积碳过多
如果损坏明显, 然后更换活塞环.
测量活塞环开口间隙
活塞环插入气缸套中.
然后用塞尺测量开口中的间隙.
这是发动机运行过程中热膨胀情况下产生的间隙.
例如:
之间的末端间隙 0.25 毫米 和 0.4 毫米. 通常需要在直径为 100 毫米.
当测量的间隙超过极限值时, the ring is over-worn.
你应该更换活塞环.
检查侧面间隙
您还可以测量活塞环和环槽之间的间隙.
步骤包括:
- 将环插入凹槽中
- 使用塞尺测量间隙
- 将结果与发动机规格进行比较
如果侧间隙变得太大, 密封性能下降.
这种情况允许燃烧气体逸出.
检查背部间隙
后间隙 后间隙是环与沟槽底部之间的距离.
正常值通常范围:
- Gas ring: 关于 0.15-0.35 毫米
- Oil ring: 0.35-0.7 毫米 (柴油发电机技术网)
如果间隙高于规格, 需要更换活塞环.
活塞环磨损测量标准
您需要将检查结果与标准磨损极限进行对比. 这将有助于决定是否更换.
典型的标准包括:
- Gap on the Ring End: 环与缸壁间隙过大，说明两者之间已发生磨损.
- 环侧间隙: 间隙过大会影响密封力.
- 环弹性: 环上的低张力降低了压缩压力.
应始终遵守发电机手册. 不同发动机的可接受极限不同.
如果任何测量值超出限制, 那么你应该立即更换活塞环.
忽视磨损可能会导致气缸划伤以及发动机故障.
更换柴油发电机活塞环的步骤
活塞环更换需要遵循正确的程序. 正确的安装有助于发动机良好的密封性和可靠性.
准备引擎
第一步是关闭柴油发电机并让发动机冷却.
Then perform these steps:
- Disconnect the power supply
- Empty engine oil, where necessary.
- Remove the cylinder head
- Gently lift off the piston assembly.
You are supposed to indicate every component in the process of dismantling. This serves to correct reassembly.
拆下旧活塞环
The rings are removed using a piston ring expander.
Do not bend the rings when taking them out.
检查以下部分:
- piston grooves
- cylinder liner surface
- piston crown condition
In case of severe damage, a new repair can be needed.
清洁活塞凹槽
Carbon deposits should be removed where the pistons are.
- Take some cleaning tool or section of a broken ring.
- Ensure that the grooves are clean and smooth.
- Contaminated grooves do not allow the movement of rings.
安装新活塞环
The rings have to be installed in the right sequence.
Most diesel engines include:
- top compression ring
- second compression ring
- oil control ring
请按照以下步骤操作:
- Install the oil ring first
- Install the second ring
- The upper compression ring should be fitted last.
Test the ring surface installations marks. Many rings have a “TOP” marking.
The mark must face upward.
调整环间隙位置
You have to stagger the gaps of the ends of the rings.
Do not proceed in the same direction.
Another typical arrangement involves:
- first ring gap at 120deg
- second ring gap at 240deg
- oil ring gap elsewhere.
This enhances performance in sealing and minimizes the leakage of gases.
重新安装活塞组件
Rub clean engine oil on the cylinder and piston.
Insert piston in the cylinder using piston ring compressor.
The following parts should then be reinstalled:
- connecting rod bolts
- cylinder head
- Components of a lubrication system.
Installation Once installed, manually rotate the crankshaft. Ensure that the engine moves smoothly.
更换时的注意事项
更换时应小心谨慎.
There are various precautions to be taken to ensure there are no issues with installation.
Important points include:
- Install engine model piston rings.
- Do not install broken or distorted rings.
- Piston grooves must be kept clean.
- Premature wear of check cylinder liner before install.
- Apply lubrications when assembling.
Replacement of rings on all cylinders should also take place in case wear is evident. The replacement of a single ring can lead to an uneven engine result.
延长活塞环寿命的维护技巧
Longer life of piston rings can be achieved by maintaining the rings.
The practices that can be recommended are:
- Change engine oil regularly
- Apply lubricating oil of good quality.
- Maintain clean air filters
- Prolonged overloading should be avoided.
- Carry out regular engine check-ups.
The clean lubrication will minimize the friction between the piston ring and the cylinder wall. Maintenance will assist you in avoiding early wear.
桌子 1. Main Piston Ring Clearance Types And Their Functions
| Clearance Type | What You Measure | Purpose Of The Measurement | Typical Inspection Tool |
| End Gap | Gap between the two ring ends inside the cylinder | Ensures proper thermal expansion and sealing | Feeler gauge |
| Back Clearance | Distance between ring inner surface and groove bottom | Prevents ring jamming during operation | Vernier caliper or depth gauge |
| Side Clearance | Gap between piston ring and groove wall | Ensures ring movement inside the groove | Feeler gauge |
桌子 2. Typical Inspection Values for Diesel Generator Piston Rings
| Measurement Item | Normal Range | Wear Limit | Maintenance Action | ||
| Ring End Gap | 0.20 – 0.40 毫米 | Above specification | Replace piston ring | ||
| Back Clearance | 0.10-0.35 毫米 | Below minimum clearance | Clean groove or replace ring | ||
| Side Clearance | 0.02 – 0.05 毫米 | 0.15毫米 |
|
The end gap should be in a position where the thermal expansion can take place during engine use. When the gap is too large, the compression is reduced, and the consumption of oil will also be high. When the gap is too narrow, the ring can swell up and get stuck in the cylinder in operation .
结论
Piston ring performance needs to be monitored in order to sustain 柴油发电机 表现. Compression loss and engine damage is avoided through early detection. Accurate measurement and replacement procedures guarantee good working of 发电机 and extended life of the engine.
经常问的问题
如何判断柴油发电机活塞环是否磨损?
You can expect the presence of blue smoke during exhausts, high oil use, decreased compression, and low engine power.
柴油发电机组活塞环磨损的原因?
Some of the frequent causes are improper lubrication, oil contamination, ingestion of dust, high operating temperature and sustained heavy engine load.
活塞环应该多久更换一次?
Replacement of rings is necessary in case the end gap of the rings or the side clearance is past the stipulated mark given by the manufacturer.
是否可以操作环磨损的柴油发电机?
Power will be less as compression loss and consumption of oil will increase. Extreme wear may result in damage to the engine.
活塞环的检查规律应该是怎样的?
You are supposed to check piston rings when the major engine maintenance is being done or there are problems in performance.
