Buying Guide to Generators for Agricultural Irrigation Systems

Кучылтмаш

Do you own farmland in remote areas? Most of the agricultural lands require a consistent water supply. They can’t wait for the power outages and the supply. Especially when you are in remote areas, consistent power is a necessity due to inefficient utility grids. Генератор-влак for agricultural irrigation systems are the ultimate solutions.

They offer non-stop energy for several hours, a day, or even a complete day. Таче, we will dive deep into the generators for agricultural irrigation systems and understand various tips.

Why Agricultural Irrigation Needs Reliable Backup Power

Water stress is an open challenge for agricultural systems. It even depends largely on the water supply. What if it gets cut off due to an insufficient power supply?

Тиде случайыште, you failed to get the required power supplies. Кызыт, the question is— how generators for agricultural irrigation systems help here.

Here are a few simple reasons.

• Prevent irrigation interruptions
• Protect high-value crops
• Maintain soil moisture
• Operate automated irrigation systems
• Reduce production losses
• Increase irrigation efficiency
• Support precision agriculture
• Ensure continuous farm operations

For commercial lands, it is even more profitable to use the generator systems.

Common Equipment Powered by Irrigation Generators

Irrigation systems not only operate the water pumps. Олмеш, there are several other tools and pieces of equipment used. We have introduced all those tools and added their power consumption here.

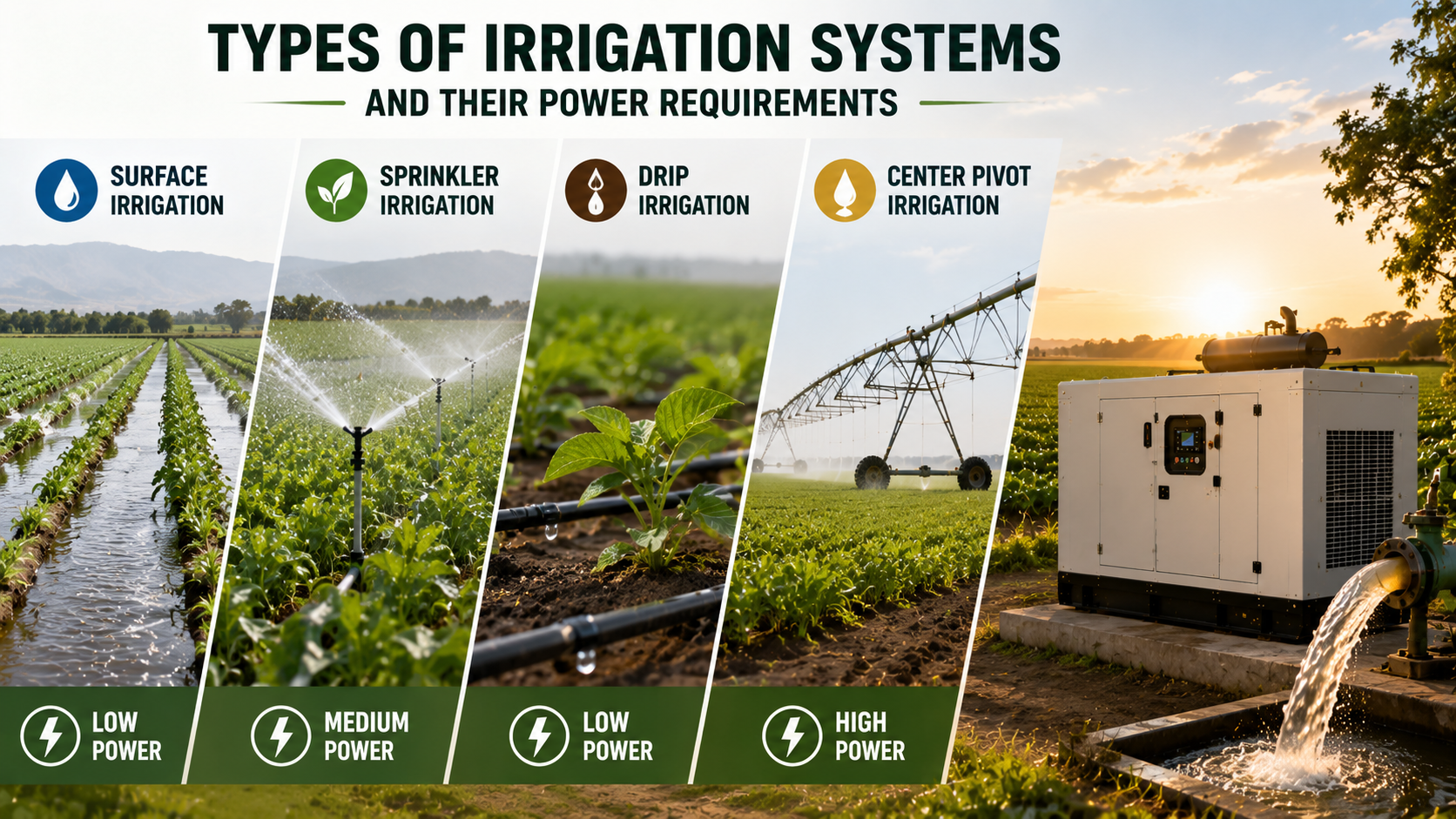

Types of Irrigation Systems and Their Power Requirements

Before you calculate the irrigation systems, you must focus on the different irrigation systems. Each system has different water requirements and produces a different range of power. Let’s evaluate each system separately.

Center Pivot Irrigation

The name is sufficient to highlight the goals and expanded setups. A center pivot irrigation system is a comprehensive water system that waters on a large scale.

There are a variety of tools used in the center pivot systems.

• Large water pump
• Pivot drive motors
• Control panels
• GPS systems
• Remote monitoring equipment

They have a generator with a power range of 40–250 kVA.

There are a few types of applications for which this irrigation system is suitable.

• Wheat
• Corn
• Cotton
• Soybean
• Large commercial farms

Drip Irrigation

A drip irrigation system is different and requires lower-power water pumps, but has a few more challenges. Мут, it requires a continuous water pump at a lower pressure.

There are a few examples of the electrical loads typically used in this system.

• Вӱд насос
• Fertigation system
• Filtration equipment
• Pressure regulators
• Automatic controllers

Typical generator sizes are often less than the other types and have a power range of 15–100 kVA.

Such generators are suitable only in a few applications. The examples of those applications are:

• Orchards
• Vineyards
• Vegetable farms
• Теплица-влак

Sprinkler Irrigation

Sprinkler systems spray water on the plants, and irrigation systems. The power consumption depends on the power tools and pump systems. Бирок, it requires medium to high power in such cases.

Here are a few main tools that consume the most power:

• Main irrigation pump
• Booster pumps
• Distribution controls

To operate this power system, you must have a generator size ranging from 20 чейин 150 кВА.

A sprinkler irrigation system is suitable for the following systems.

• Field crops
• Turf
• Pastures
• Sports grounds

Flood Irrigation

As the name indicates, this irrigation system requires a high amount of water. Only the high-power water pump systems match the needs of flood irrigation and provide a seamless power supply.

Тидлан, you should have a large generator size. The most famous range is 50–300 kVA.

It is suitable for those lands that require high water. Examples include:

• Rice cultivation
• Sugarcane
• Large irrigation canals

How Do You Choose the Right-Sized Generators for Agricultural Irrigation Systems?

If you are wondering about the right selection of generators for agricultural irrigation systems, we have added the key tips.

Каҥашымаш #1: Calculate Total Power Requirements Correctly

One of the biggest mistakes is always with the power calculations. Suppose you want to calculate overall power consumption. It is not just the pump you should include. Олмеш, you must focus on the other equipment, such as the fertigation system, borewell pumps, and all other equipment listed. Тулечат утла, check their quantities as you need a power system with high compatibility for your needs.

Let’s calculate the power requirements of the tools used in the agricultural irrigation systems.

Largest motor = 37 кВт

Starting multiplier = 3×

Starting load =

37 × 3 = 111 кВт

Other equipment continues running:

111 + 22 = 133 кВт

Add a recommended safety margin of 20%.

133 × 1.20 = 160 кВт

Whenever buying the generators for agricultural irrigation systems, you must focus on the total power requirements and starting loads. ИК 200 kVA generator would comfortably provide power in this case.

Каҥашымаш #2: Match the Generator to the Irrigation Pump Type

Pump consumption and electrical demands vary from one irrigation pump system to another. Every pump has a different and unique system.

In addition to the horsepower, features and other factors matter in this case.

Here are a few tips to consider when choosing matching generators for your irrigation pump systems.

• What is the motor’s starting method? There can be DOL, Star-Delta, Soft Starter, or VFD starting options.
• Verify the pump manufacturer’s recommended voltage tolerance.
• Operating generators at 80–85% load continuously is very critical. You should avoid selecting generators that operate above 85%.

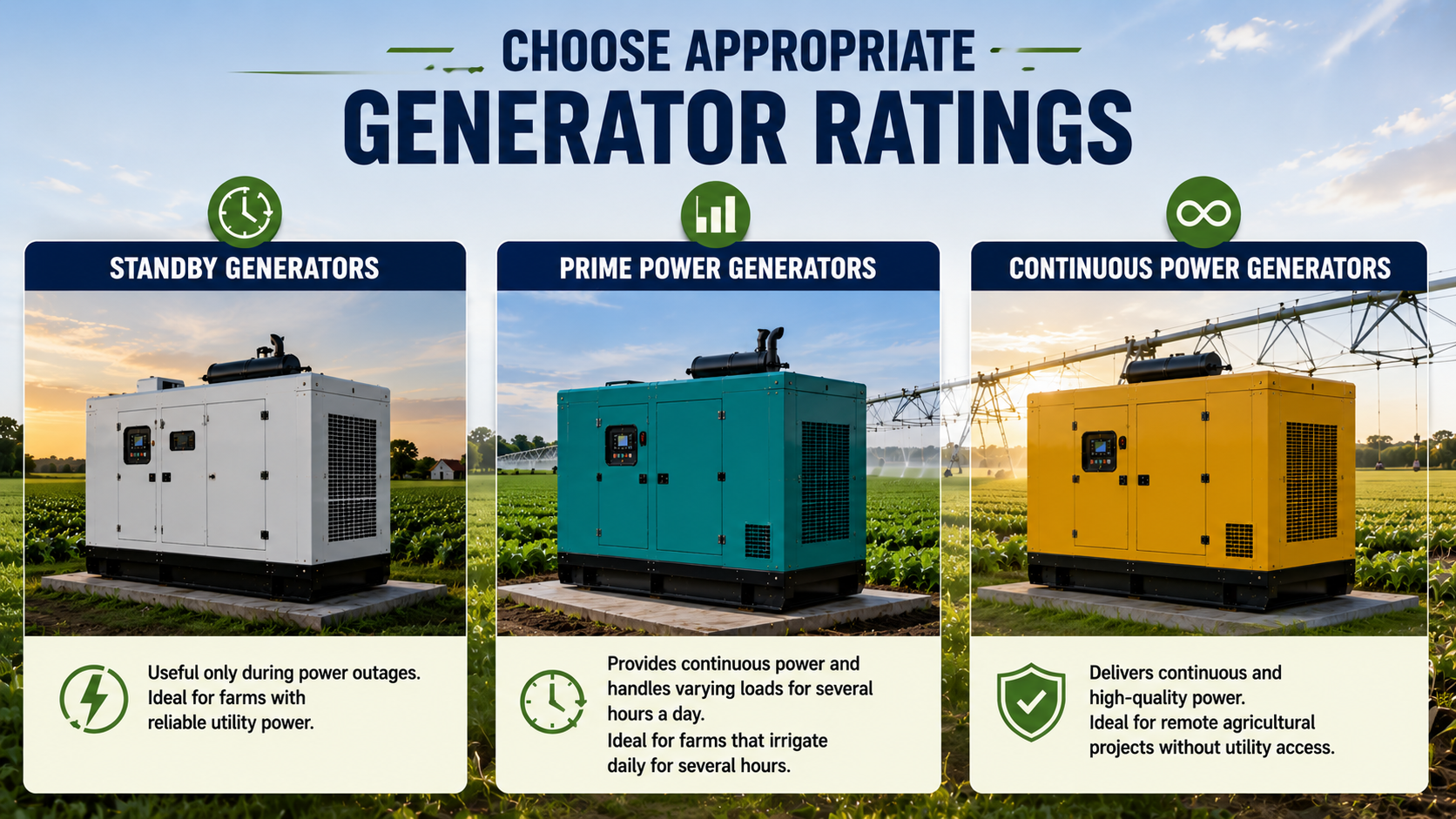

Каҥашымаш #3: Choose Appropriate Generator Ratings

If you are looking for the right generators, there are three different ratings. They operate differently and provide power in different situations.

Let’s uncover those three generators here.

• Вучымо генератор-влак. They are useful only during the energy cases. Example use cases are farms with reliable utility power.
• Прайм энергий генератор-влак. They offer a seamless energy generation and handling of varying loads for several hours a day. It powers farms that irrigate daily for several hours.
• Continuous Power Generators. They offer continuous and quality power supply. Such generators are ideal for remote agricultural projects without utility access.

Каҥашымаш #4: Select the Right Fuel Type

In the case of generators for agricultural irrigation systems, there are several fuel types. Even each fuel type has different applications and requirements.

Here is the list of fuel types.

• Diesel is the best and high-output fuel with a moderate initial cost.
• Natural gas offers lower power but features clean and sustainable energy production with no noise pollution.
• Biogas has a high investment but produces low-cost energy because of organic waste.
• PTO generators are most affordable but have a lower efficiency.

You should consider the fuel types and choose generators based on the fuel requirements and consumption systems.

Каҥашымаш #5: Evaluate Fuel Tank Capacity

Fuel is the main factor behind the continuous running of the generator systems. If you run out of fuel supply, the generators will stop and ultimately cause issues. Based on the runtime, you should calculate the fuel consumption and choose the right generator.

Пример

Generator Size = 200 кВА

Average Load = 70%

Fuel Consumption ≈ 28 литр/шагат

Operating Time = 10 шагат/кече

Daily Fuel Need

28 × 10 = 280 liters/day

Weekly Requirement

280 × 7 = 1,960 liters/week

Каҥашымаш #6: Пӱртӱс условийым шотыш налын

Agricultural farmlands are always exposed to the outdoors and face more challenges. Мут, sudden rainy weather or dust and insects can affect them.

Due to moisture and water exposure, components get rusted. To combat all such cases, you should have the following additional features.

• Игече деч аралыше корпус
• Dust-resistant air filtration
• Неле радиатор
• Corrosion-resistant canopy
• Elevated base frame for flood protection
• Rodent-resistant wiring
• Rain protection

Каҥашымаш #7: Voltage Regulations and Power Quality

Modern agricultural irrigation systems have a few sensitive devices. Мут:

• PLC controllers
• Automatic valves
• Variable Frequency Drives (VFD-влак)
• Moisture sensors
• Remote monitoring systems
• Fertigation controllers

These devices get damaged due to fluctuations in the voltage and power. Тугеже, you should have those generators for agricultural irrigation systems that offer a stable power supply and decrease the chances of impacts on these devices.

Common features are:

• Автоматический напряженийым регулятор (АВР)
• Electronic governor
• Stable frequency control
• Low harmonic distortion
• Писын нагрузко вашмут

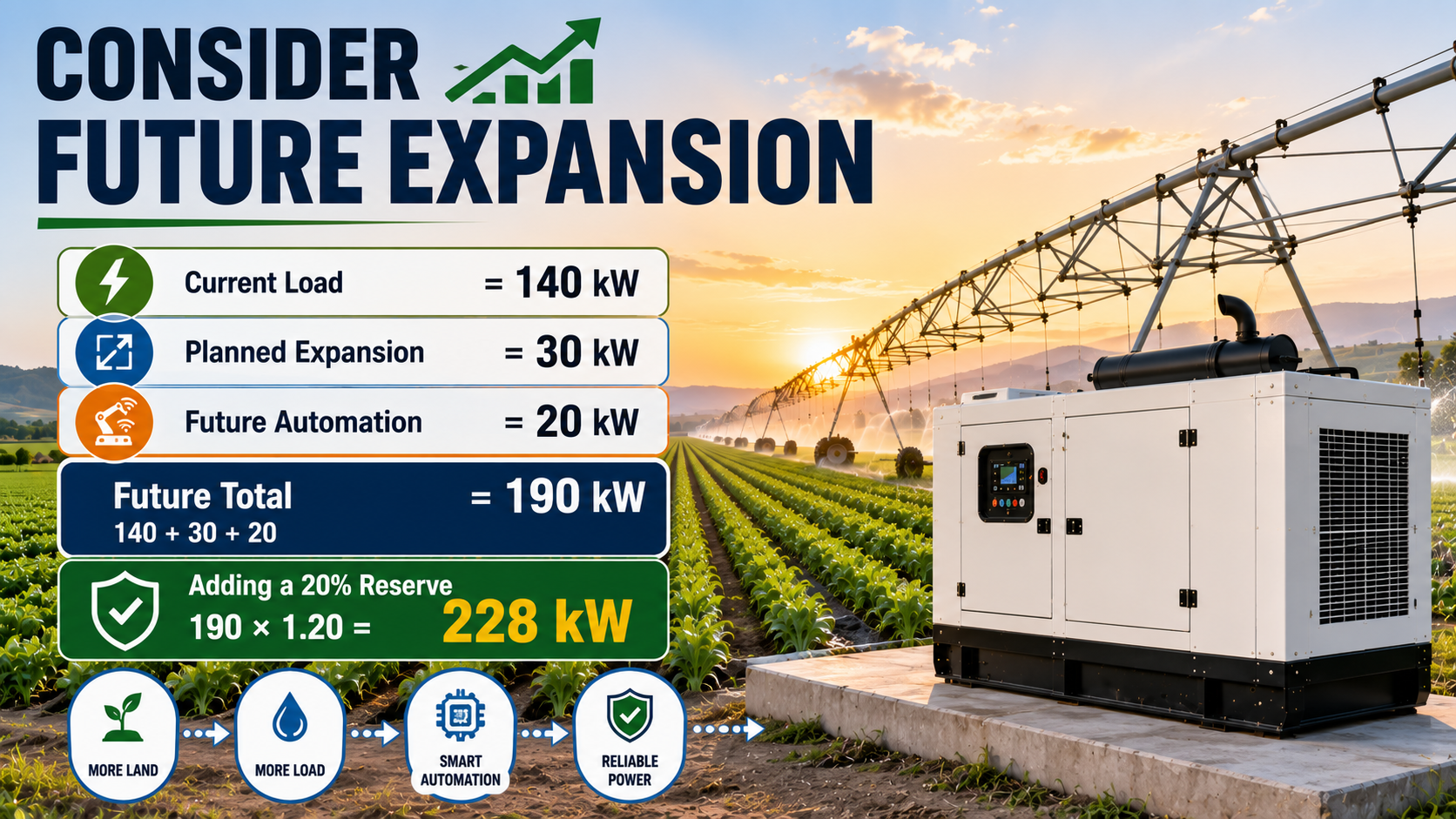

Каҥашымаш #8: Consider Future Expansion

Many farmlands have expanded over the years. Buying a generator with no future expansion plans can cause undersizing when you expand the system.

Тугеже, you should consider the future expansions as follows.

Current Load = 140 кВт

Planned Expansion = 30 кВт

Future Automation = 20 кВт

Future Total

140 + 30 + 20 = 190 кВт

Adding a 20% reserve:

190 × 1.20 = 228 кВт

Каҥашымаш #9: Select a Reliable Manufacturer

Manufacturers can significantly affect the overall generator quality. A few low-quality generators can come at a lower price from unreliable manufacturers.

When choosing a manufacturer, you should consider factors like:

• Гарантий леведыш
• Запчасть-влакын улмышт
• Local service network
• Technical support
• Preventive maintenance programs
• Emergency repair response
• Availability of remote monitoring
• Операторым туныктымаш

Каҥашымаш #10: Профилактике обслуживатлымаш

Maintenance is essential. Whether daily, арня еда, or monthly maintenance, you should consider the following factors.

Йодыш-влак

• What generator rating is best for daily irrigation?

Prime power generators are the best option for daily irrigation. It is because they offer continuous power and handle varying loads compared to continuous generators.

• Can one generator power multiple irrigation pumps?

Ооба. One generator is sufficient to power multiple irrigation pumps. But make sure the pumps’ power rating falls within the rated power of the generators so it can protect and safely provide the energy.

• Should I size the generator according to running power or starting power?

You should calculate both the running and starting power. Бирок, always have plans to meet the starting power as it is larger than the running loads.

• Is a diesel generator better than a gasoline generator for irrigation?

Ооба, 100%, a diesel generator is far better than a gasoline generator. It is because of higher power output, better fuel efficiency, higher torque, and longer service life.

• What size generator is required for an agricultural irrigation system?

It depends on what tools you are going to operate. Мӧҥгешла, a generator with a capacity of 50-500kV is sufficient to power the whole irrigation system.

• Is it worth buying a larger generator for future farm expansion?

Ооба. It is worth buying a large generator, but you should consider buying the larger generators only when you have an expansion in the near future. It helps prevent oversizing or undersizing of the generators.

• Are weatherproof enclosures necessary for Озанлык генератор-влак?

Since farm generators are often installed in outdoor places and are affected by sunlight or rainy weather, you should have weatherproof enclosures. They protect them very well.

• How often should an irrigation generator be serviced?

Daily inspection is a must-have activity for the irrigation generators. You should thoroughly check the generators and inspect them very well. After 250–500 hours, you should consider oil or filter replacements.

• Can irrigation generators operate with automatic start?

Автоматический переключатель дене, irrigation generators can operate for automatic starts. They provide a seamless energy transmission between different sources and provide instant starts.

• How much reserve capacity should a generator have?

Generators should have 15-25% of the reserve capacity as an additional. It is because of the future expansions or current power requirements.

Мучашмут

Whenever you are choosing generators for agricultural irrigation systems, always focus on the power requirements and operational tools. Keep your generators optimally sized to avoid efficiency issues. A proper generator can provide a seamless energy supply.

Do you want to purchase high-quality generators? Вашкыл Хуакуань куат. We have premium-quality generators and deliver a high-performance system with our premium tools. Get a wide range of generator operating systems with our experts. Talk to them the right way!
