When the diesel generator is running but not producing any electricity it can stop everything. Even be a safety risk. This guide will help you figure out what is wrong and fix the problem of no output voltage of diesel generator.
No output voltage in diesel generator usually happens when there is a problem with the excitation loop, which’s the process that creates a magnetic field. Without this field the copper windings cannot produce any current. The no output voltage in diesel generator problem can be caused by something like a tripped breaker or something more complicated like a problem with the regulator or even a loss of the magnetic “memory” in the unit.
2. No Output Voltage of Diesel Generator Inspection Steps
When the Diesel Generator is running but not producing any electricity you need to do an inspection. Do not start by replacing parts. Instead follow an order from the outside controls to the inside circuitry. This approach will help you find the root cause of the no output voltage in diesel generator problem.

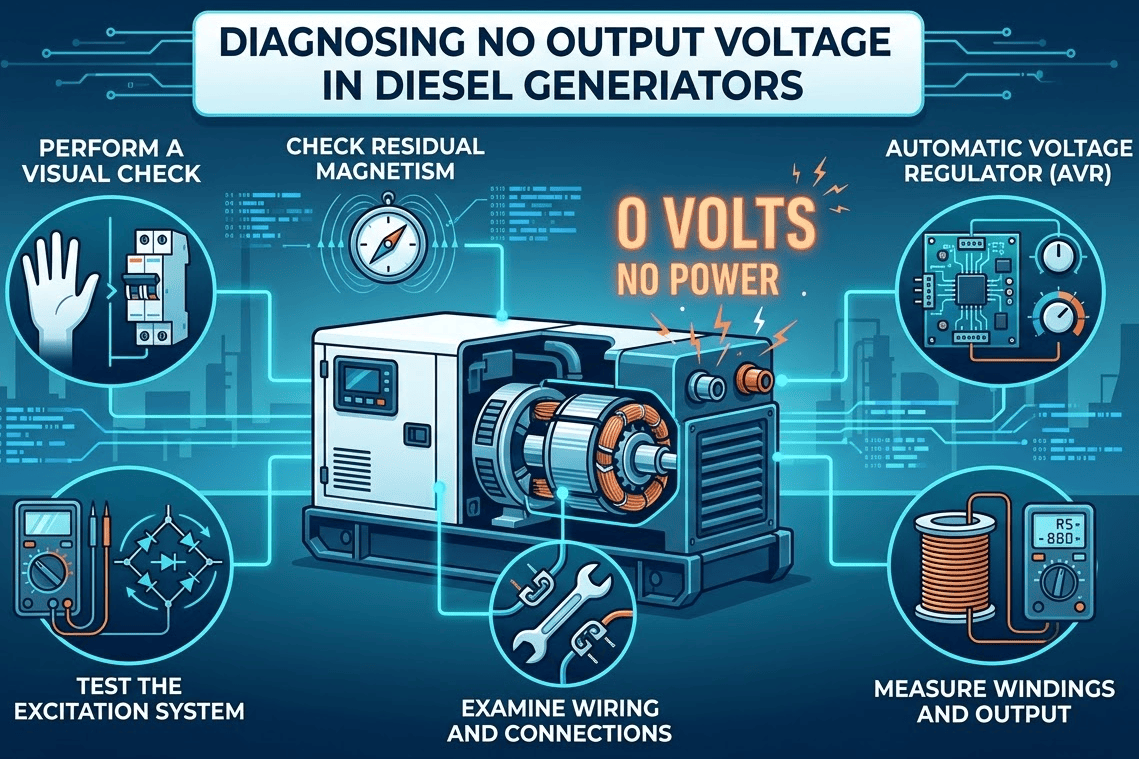

The following steps will guide you through a grade diagnostic sequence to figure out if the no output voltage in diesel generator problem is mechanical, electrical or magnetic.
2.1 Check Residual Magnetism
The Diesel Generator relies on an amount of residual magnetism to start producing voltage. If the Diesel Generator has been sitting idle for a time or was shut down under a heavy load this magnetism can disappear. To check this use a multimeter to see if there is a ghost voltage while the unit is running. If you do not see any voltage the magnetism is probably gone.
2.2 Automatic Voltage Regulator (AVR)
The AVR is the common thing to fail. It controls the amount of DC current sent to the exciter. Check the AVR for any fuses or visible damage. Many AVRs have a LED light. If the AVR has input but No Output Voltage in Diesel Generator to the field the regulator is faulty.
2.3 Test the Excitation System
The excitation system consists of the exciter stator and the rotating rectifier. To test this you may need to perform a “field flashing” test. This involves applying a DC source to the field windings. If the Diesel Generator output jumps up during the test the main alternator is healthy. The no output voltage in diesel generator problem is with the excitation circuit. Also check the rotating diodes on the shaft. If one is shorted it can kill the field entirely.
2.4 Measure Windings and Output
If the control systems pass the inspection you need to measure the resistance of the stator and rotor windings. Use an ohmmeter to check for continuity and specific resistance values. Also use a megohmmeter to test the insulation resistance to the ground. If the windings have shorted to ground the electricity is escaping into the frame of the Diesel Generator flowing to the output terminals.
3. No Output Voltage of Diesel Generator Causes
Understanding what causes the no output voltage in diesel generator is key to preventing it from happening. Most no output voltage in diesel generator causes are related to the field or the integrity of the conductive path. By identifying these triggers operators can move beyond surface-level fixes to implement long-term reliability.
3.1 No Output Voltage of Diesel Generator Due to Damaged Connections
Mechanical vibration can cause wires to rub against the metal frame leading to insulation or open circuits. If the wires connecting the exciter to the rotor are severed the magnetic field disappears. Corroded terminals in high-humidity environments can create a layer of -conductive material. These physical breaks in the path prevent the flow of excitation current.
3.2 Excitation System Failure
The excitation system is the power plant within the power plant. If the rotating rectifier fails the Diesel Generator loses its magnetism. Diodes in the rectifier can burn out due to heat or electrical surges. When this happens the circuit is. The rotor becomes just a spinning piece of metal without a magnetic field.
3.3 Faulty Voltage Regulator
The AVR is a component that can fail due to heat. If the internal transistors or capacitors fail the AVR can no longer modulate the excitation current. This failure is often binary. It works perfectly or provides nothing at all. Environmental factors like dust buildup or moisture can also cause the no output voltage in diesel generator problem.
3.4 Loss of Residual Magnetism
Residual magnetism is the magnetic field left in the exciters iron core. It is the primer for the pump. This magnetism can be lost if the Diesel Generator is stored for a time without use or if it was shut down abruptly under a massive load. Without this initial field the Diesel Generator cannot generate the small amount of voltage the AVR needs to power itself.
4. No Output Voltage of Diesel Generator Solutions
Restoring power requires targeted actions based on your inspection findings. Whether it is a wiring fix or a complex component replacement these solutions are designed to restore the electromagnetic cycle safely and effectively.
4.1 Repair Electrical Connections
Begin by cleaning all terminals with an electrical contact cleaner and a wire brush. Re-crimp any connectors and replace brittle or burnt wiring with high-temperature oil-resistant cables. Ensure all ground connections are metal-to-metal and tight.
4.2 Fix Excitation Components
If the rotating diodes are faulty they must be replaced as a set. Use a soldering iron to remove the old diodes and install new high-quality replacements. Check the surge suppressor. Replace it if it is cracked.
4.3 Replace Voltage Regulator
When an AVR is confirmed dead replacement is the reliable solution. Ensure the new AVR matches the specifications of your alternator. After installation you must set the AVR. With the Diesel Generator running at the speed carefully, turn the Volts potentiometer until the output reaches the desired level.
4.4 Restore Residual Magnetism
To flash the field and restore magnetism identify the F+ and F- terminals, on the AVR. With the engine running briefly connect a 12V DC battery to these terminals ensuring polarity. You will usually hear the engine grunt slightly as the magnetic field is established and the voltage jumps up.
5. No Output Voltage of Diesel Generator Conclusion
The Diesel Generator is a piece of equipment that requires careful maintenance and inspection to ensure it is working properly. By following the steps outlined in this guide you can. Fix the problem of No Output Voltage in Diesel Generator and get your Diesel Generator up and running again. Remember to follow safety procedures and use the right tools for the job.
