Professional Manufacturer of Mobile Generator
These mobile features include 360-degree swivel maneuverability for easy positioning, combined with stable operation and a space-efficient footprint.
Its robust welded channel frame incorporates engineered joints for superior strength and rigidity, complemented by leaf spring suspension to enhance stability during transport. The height-adjustable pintle hitch ensures compatibility with a wide range of towed vehicles. A straight-through tubular axle provides a compact and dependable foundation. Four-corner mechanical supports and a comprehensive triple-brake system—including service, parking, and breakaway emergency braking—deliver secure stopping performance under all operating conditions.

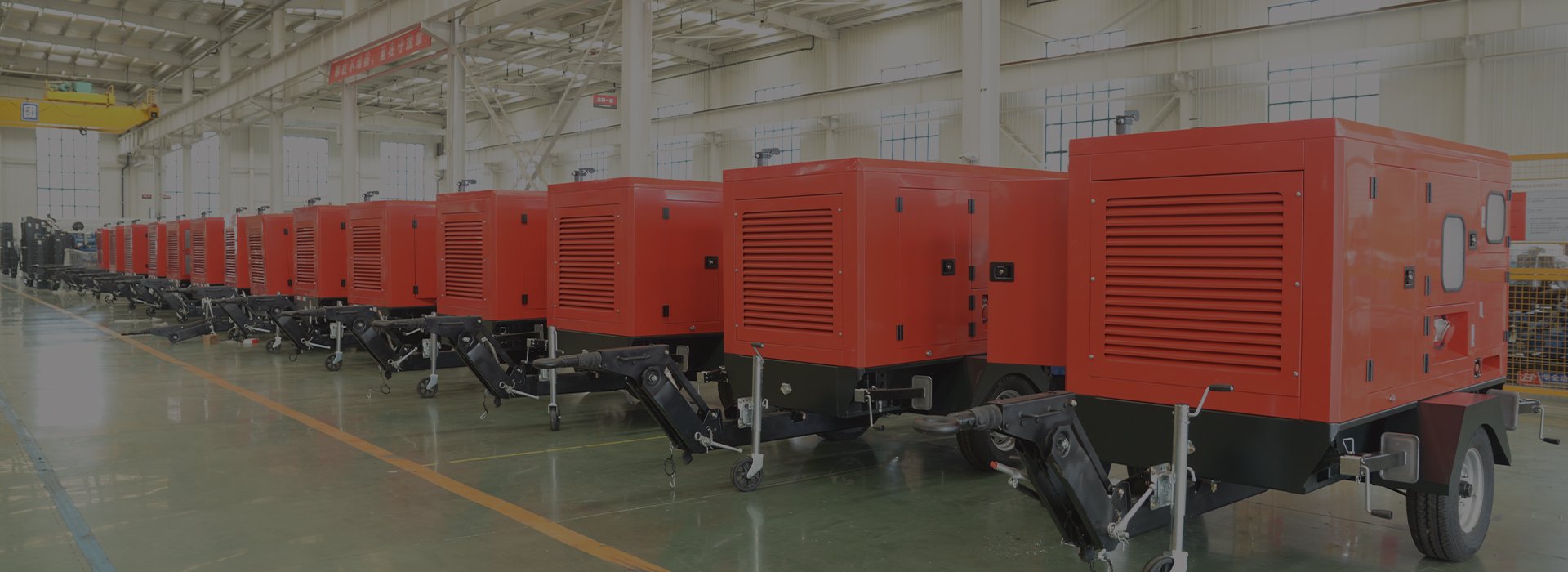

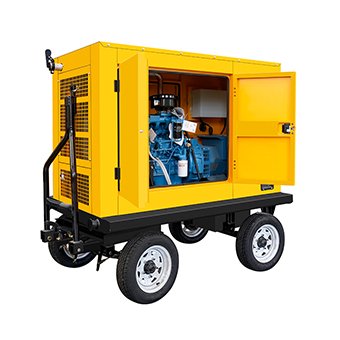

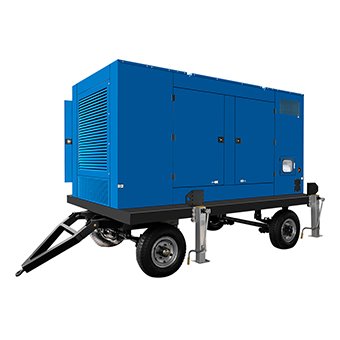

HUAQUAN Mobile Generator

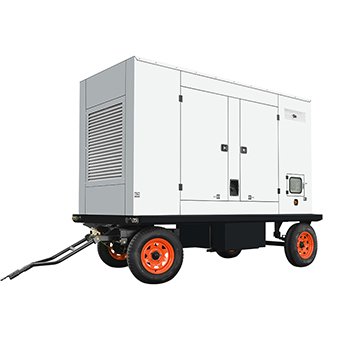

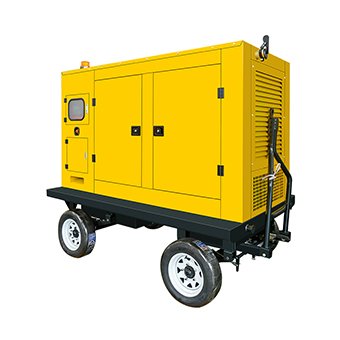

Mobile Generator’s Model: 1.8T/2.4T, 3T/4.5T
Can be equipped with: Generator sets under 250 kW.
Can be equipped with: Heavy-duty generator sets from 200 kW to 350kW.
Can be equipped with: Heavy-duty generator sets from 500 kW to 1000 kW.
Can be mounted on a trailer for high-speed road travel.

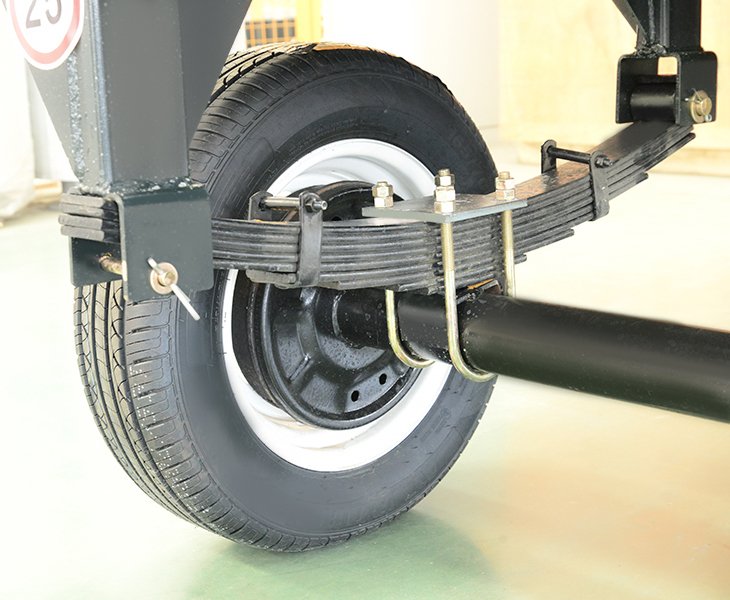

Suspension System
Multi-leaf springs with light-truck mounting brackets, enabling direct bolt-on generator attachment for reduced weight and simplified installation.

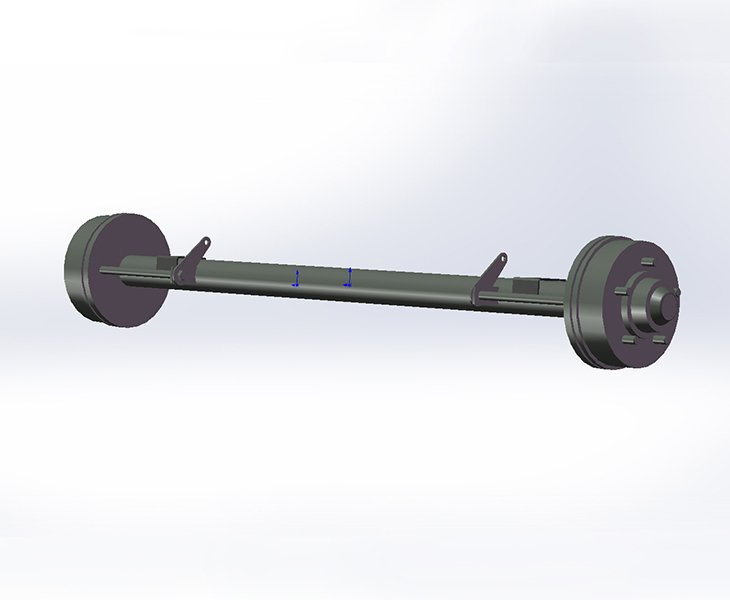

Axle Assembly
High-strength low-alloy steel axle tubing. Forged alloy steering knuckles enhance load capacity, while optimized spring seats reinforce axle-suspension rigidity.

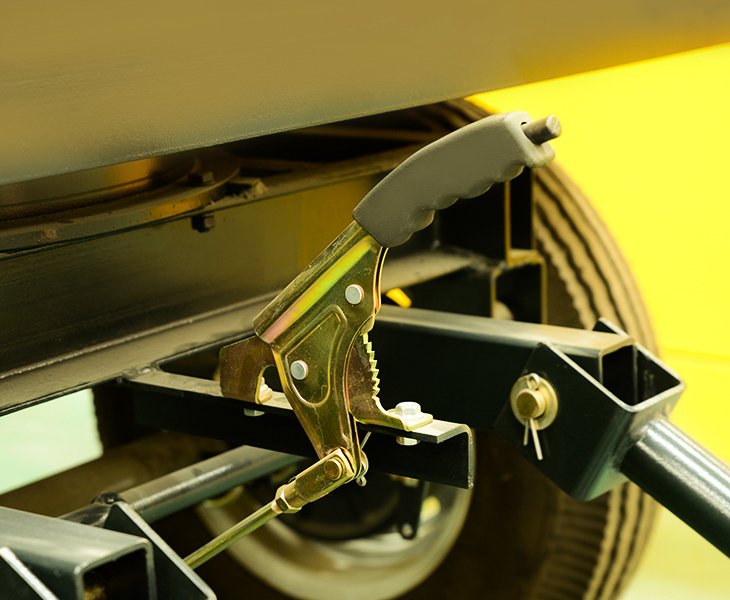

Braking System
Lightweight truck-derived brake components. Parking brake with precision fine-tuning mechanism and cable-actuated transmission for flexible positioning.

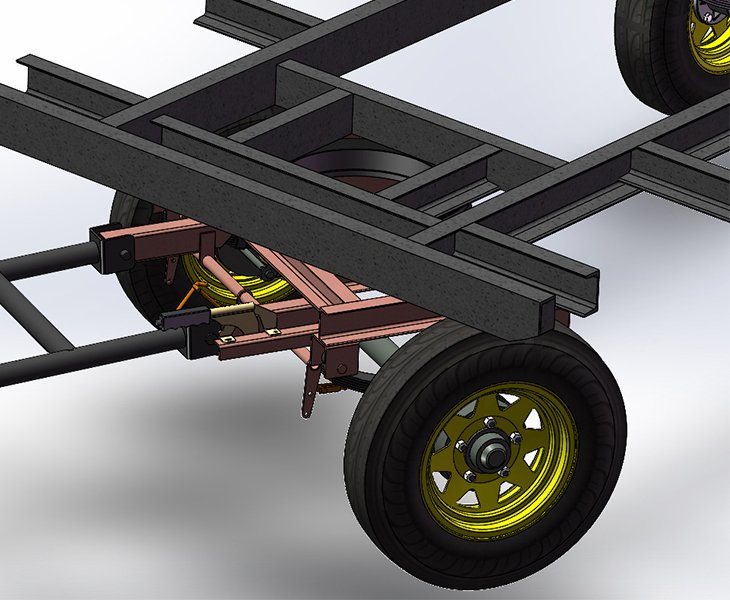

Wheel Hub Assembly
Weight-optimized hubs with multi-specification rim compatibility. Tire options: 13″ (155/165/175R13C), 14″ (185/195/205R14C), 15″ (215/75R15/ST225/75R15).

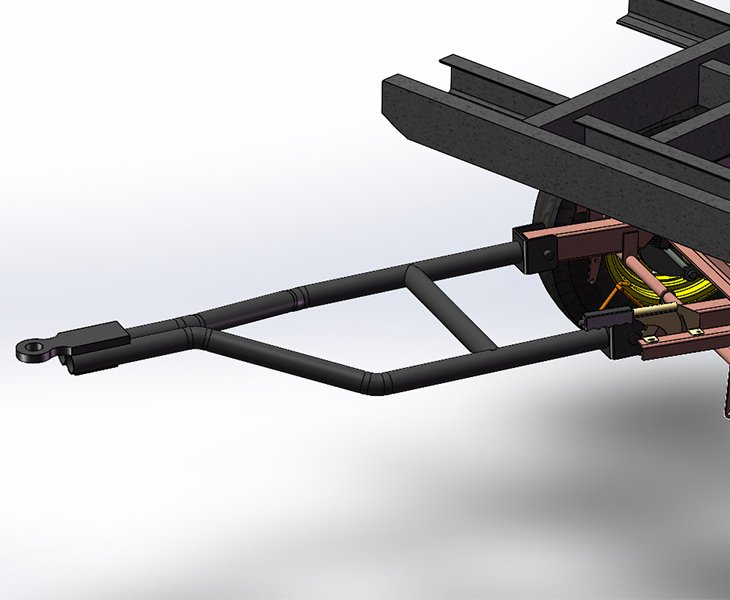

Drawbar Mechanism
Lightweight tubular drawbar with reversible orientation. Forged coupling rings substantially increase towing capacity.

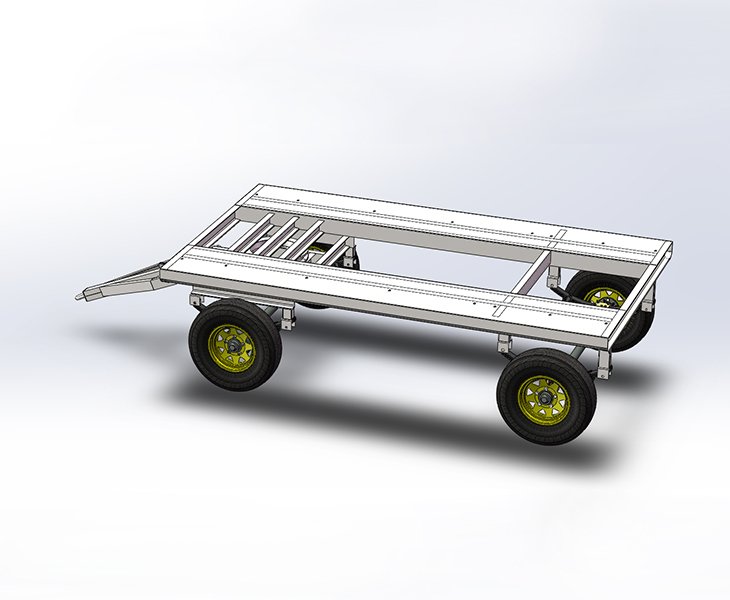

Technical Specifications
4-ton payload model: Approx. 400kg tare weight (ST235/80R16 tires), gross weight ≤4.5 ton
2.5-ton payload model: Approx. 320kg tare weight (175R13C tires), gross weight ≤3 tons
Mobile generator sets are categorized into standard and high-speed configurations. Standard mobile generators operate at 30 km/h for short-distance transit, while high-speed variants support towing up to 80 km/h.
Fluid systems require daily checks of engine oil, coolant, and fuel reserves – replenish with GB-standard No.0/-10 diesel (ambient temperature > -10°C). Clean air filters every 50 operating hours; oil-bath filters demand diesel flushing and lubricant replacement every 200 hours. Regularly drain fuel-water separators. Electrical systems must monitor maintenance-free battery charge and secure cable connectors against vibration-induced faults.
Emergency operations necessitate ≥ 300kW mobile generators with 15-second auto-start and integrated GPS monitoring (ref. Hangzhou Asian Games sports venue backup power systems). Urban construction mandates 65-75 dB(A) silent models compliant with China III/China IV+ emissions standards and DPF filters (compulsory in regulated zones e.g. Beijing).
