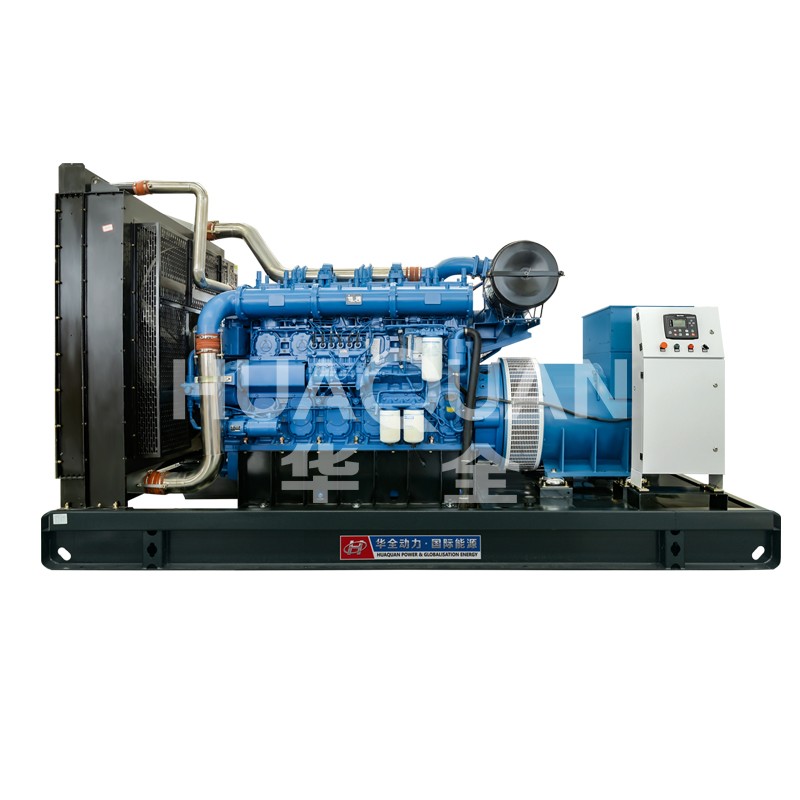

900KW YC Diesel Generator Set
| Technical parameters of generator set | |
| Model specifications | HQ900GF |
| output power | 900kW/1125kVA |
| Output voltage | 380V |
| output current | 1620A |
| Power factor | COSΦ=0.8 |
| Rated frequency | 50Hz |
| rated speed | 1500rpm |
| Open frame unit/weight | 8013KG |
| Open shelf size | 4550*1770*2600 |
| Speaker unit/weight | 9100KG |
| Silent size | 5300*2200*2660 |
| Noise (LP7m) | 95dB（A） |
| Diesel engine parameters | |
| Diesel engine model | YC6C1520-D31 |
| Brand/Origin | YC/Guangxi |
| displacement | / |
| Rated power of diesel engine | 1016kW |
| Fuel Grade | （Standard）0#Light Diesel |
| Fuel consumption (full load) | 195g/kW·h |
| No. of cylinders | 6/L |
| Compression ratio | / |
| start mode | DC24V electric start |
| Lube Capacity | / |
| Speed Control | Electric control unit pump |
| Generator parameters | |
| Motor model | HQF-900 |
| Insulation level | H |
| Overload capacity | 110% |
| protection grade | IP22 |
| Connection | Three phase four wire, Y-shaped connection method |
| Adjustment method | AVR |
