| Technical parameters of generator set | |

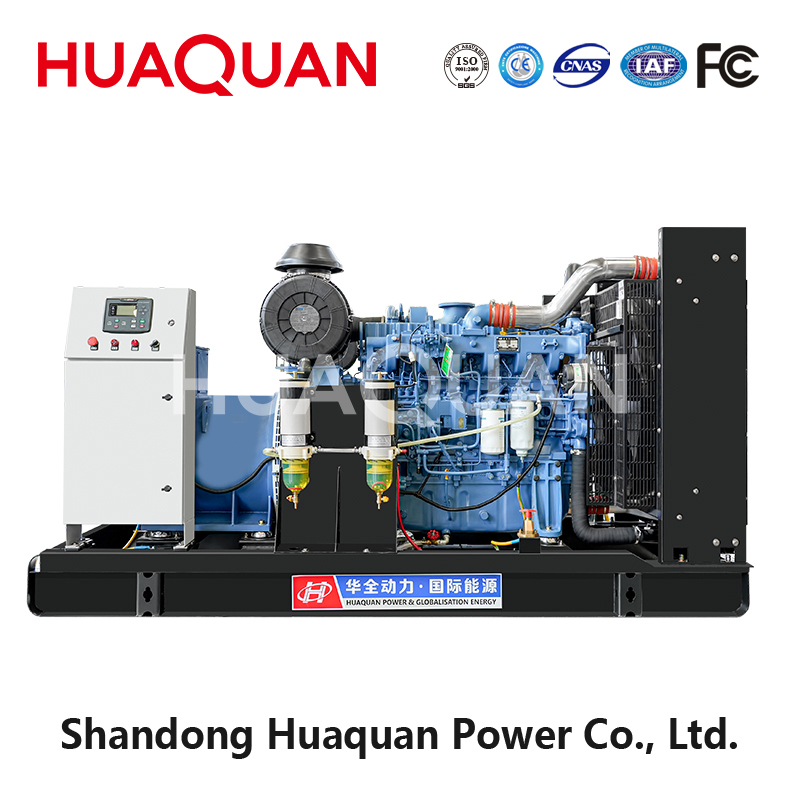

| Model specifications | HQ300GF |
| output power | 300KW/375KVA |
| Output voltage | 380V |
| output current | 540A |
| Power factor | COSΦ=0.8 |
| Rated frequency | 50Hz |
| rated speed | 1500rpm |
| Open frame unit/weight | 2400KG |
| Open shelf size | 3000*1200*1580 |
| Speaker unit/weight | 3400KG |
| Silent size | 4100*1500*2100 |
| Noise (LP7m) | 95dB（A） |
| Diesel engine parameters | |
| Diesel engine model | YC6MJ500L-D21 |
| Brand/Origin | YC/Guangxi |
| displacement | / |
| Rated power of diesel engine | 340KW |
| Fuel Grade | （Standard）0#Light Diesel |
| Fuel consumption (full load) | 195g/kW·h |
| No. of cylinders | 6/L |
| Compression ratio | / |
| start mode | DC24V electric start |
| Lube Capacity | / |
| Speed Control | Electronic speed regulation |
| Generator parameters | |
| Motor model | HQF-300 |
| Insulation level | H |
| Overload capacity | 110% |
| protection grade | IP22 |
| Connection | Three phase four wire, Y-shaped connection method |
| Adjustment method | AVR |
