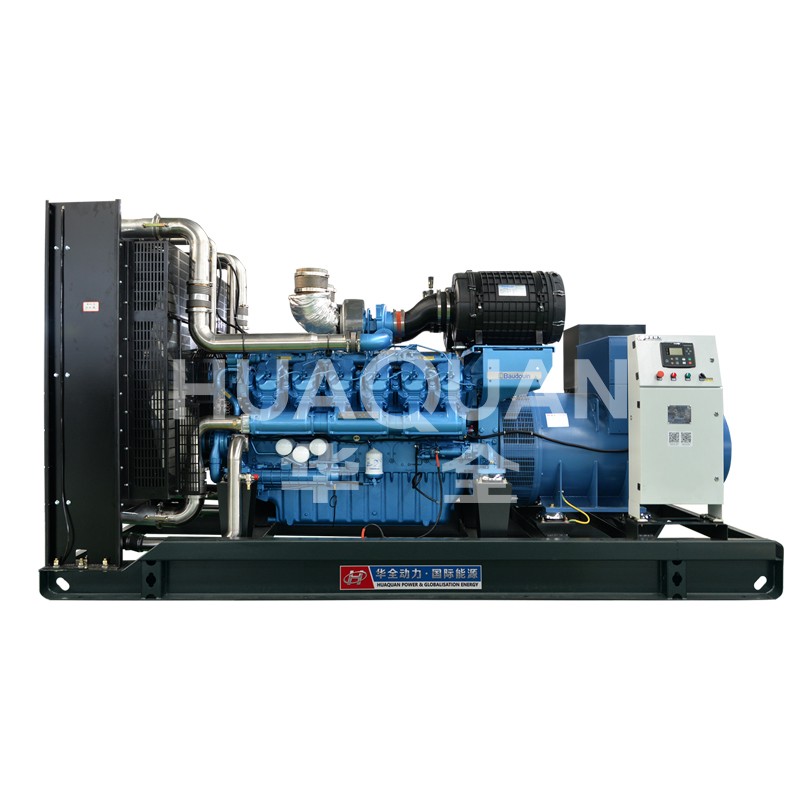

800KW WC Diesel Generator Set
| Technical parameters of generator set | |
| Model specifications | HQ800GF |
| output power | 800kW/1000kVA |
| Output voltage | 430V/230V |
| output current | 1440A |
| Power factor | COSΦ=0.8 |
| Rated frequency | 50Hz |
| rated speed | 1500rpm |
| Open frame unit/weight | / |
| Open shelf size | / |
| Speaker unit/weight | / |
| Silent size | / |
| Noise (LP7m) | 95dB（A） |
| Diesel engine parameters | |
| Diesel engine model | 12M26D968E200 |
| Brand/Origin | WC/Shandong |
| displacement | 31.8L |
| Rated power of diesel engine | 880KW |
| Fuel Grade | （Standard）0#Light Diesel |
| Fuel consumption (full load) | 195g/kW·h |
| No. of cylinders | 12/L |
| Compression ratio | / |
| start mode | DC24V electric start |
| Lube Capacity | 109L |
| Speed Control | Electronic speed regulation |
| Generator parameters | |
| Motor model | HQF-800 |
| Insulation level | H |
| Overload capacity | 110% |
| protection grade | IP22 |
| Connection | Three phase four wire, Y-shaped connection method |
| Adjustment method | AVR |
