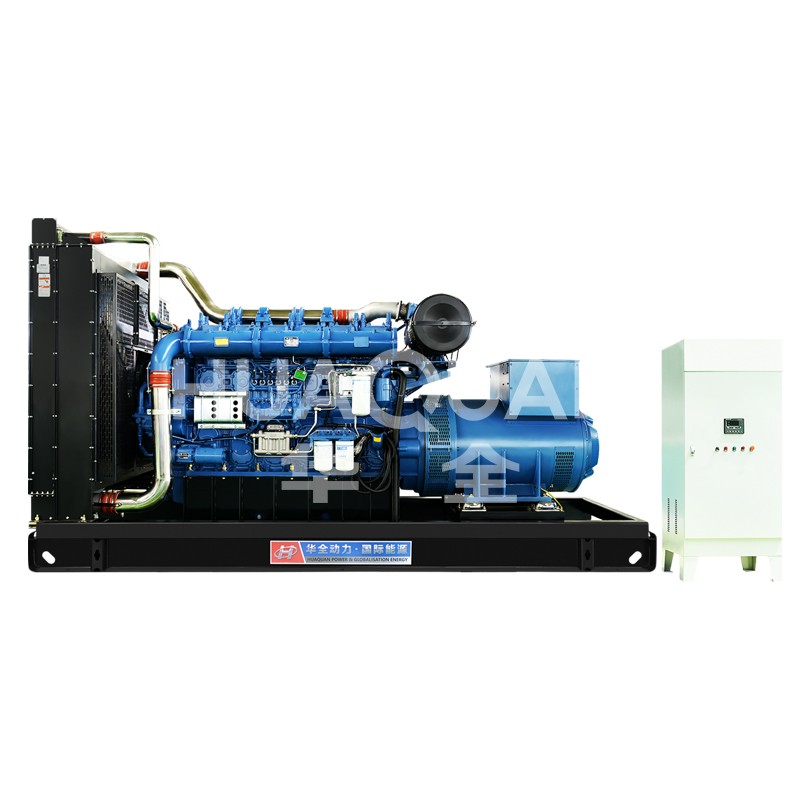

Diesel Generator Set

Fuel selection: Use standard 0# or -10# diesel (depending on the temperature).

Installation environment: Ensure good ventilation and avoid dust and moisture.

Regular maintenance: Replace the engine oil every 500 hours and check the coolant and battery.

The conditions for using the parallel operation system are that the voltages, frequencies, and currents for the two diesel generator sets must be consistent at the same time. The parallel operation of the diesel generator sets is accomplished by using a dedicated parallel operation device. It is generally recommended to use an automatic parallel cabinet. Try not to use manual parallel operation. The success or failure of manual parallel operation depends on human experience.

The power rating of a diesel generator will tell you how much electrical load a generator can safely handle. It is typically displayed in kVA or kW and helps users comprehend if the generator fits their needs or not. A generator of higher rating can support a higher number of machines, equipment or appliances simultaneously.

There are different types of power ratings like prime power, standby power and continuous power. Prime power is used where the generator is operated for long hours with varying loads. Standby power is for use in case of an emergency in the event of power cuts, and is not intended to be used constantly. Continuous power is used where the generator is running at a constant load all the time.

Understanding the power rating is important as overloading a generator can lead to overheating, high fuel consumption, and equipment damage. Choosing the proper rating is important to ensure stable performance, engine life and fuel efficiency. Before choosing a diesel generator, always calculate your total load and add a safety margin so that you do not face any issues in the future.

Fuel consumption of diesel generator depends on the size, load level and working hours. A generator with a low load on it will consume less fuel, and a generator that is near full output will also consume more diesel. Fuel consumption is typically measured in litres per hour.

For example, a small diesel generator may only use a few litres per hour, whereas large industrial generators may use much more. Running a generator at around 70 to 80 percent load is considered ideal as it offers good efficiency and less wastage of fuel. Very low load operation can be detrimental as well, in that it can lead to carbon build-up inside the engine.

Other things, such as engine condition, quality of maintenance, and quality of the fuel, also come into play when it comes to fuel consumption. Regular servicing, clean filters and good quality diesel keep fuel usage under control. Understanding fuel consumption is important for businesses that are looking to plan their fuel storage needs, calculate their operating costs, and avoid unexpected downtime during a power outage.

Regular maintenance is necessary to ensure that a diesel generator operates smoothly and reliably. A well-maintained generator starts quickly, provides a stable power supply, and lasts longer. Without proper maintenance, minor problems can become major problems that lead to breakdowns or total failure.

Maintenance includes checking engine oil, coolant levels, air filters, fuel filters and battery condition. Oil changes are particularly important as old oil can damage engine parts. Filters must be cleaned/replaced to ensure proper airflow and fuel supply. Batteries should also be tested regularly to avoid starting issues.

Routine maintenance also aids in finding worn out parts before they fail. This limits repair costs and sudden power failure in emergencies. For generators that are going to be used as a backup power source, periodic test runs are necessary to ensure that they are available when they are needed. Following a proper maintenance schedule helps to boost the safety, efficiency, and performance of the diesel generator.

Power factor indicates the level of efficiency a diesel generator has in converting the fuel into usable electrical power. It is most often represented by a number between 0 and 1. Most diesel generators are set up so that the power factor is 0.8 or 0.9, depending on the application.

A low power factor indicates that the generator is providing more apparent power than usable power. This can result in increased current, losses and decreased efficiency. Many electrical loads, like motors and air conditioners, decrease power factor, as they are reactive power loads.

The power factor helps in determining the right generator size. If the power factor is ignored, the generator may be overloaded even when the kW load appears to be low. Improving power factor by correct load management or correction equipment, which reduces the stress on the generator and improves fuel efficiency and performance.

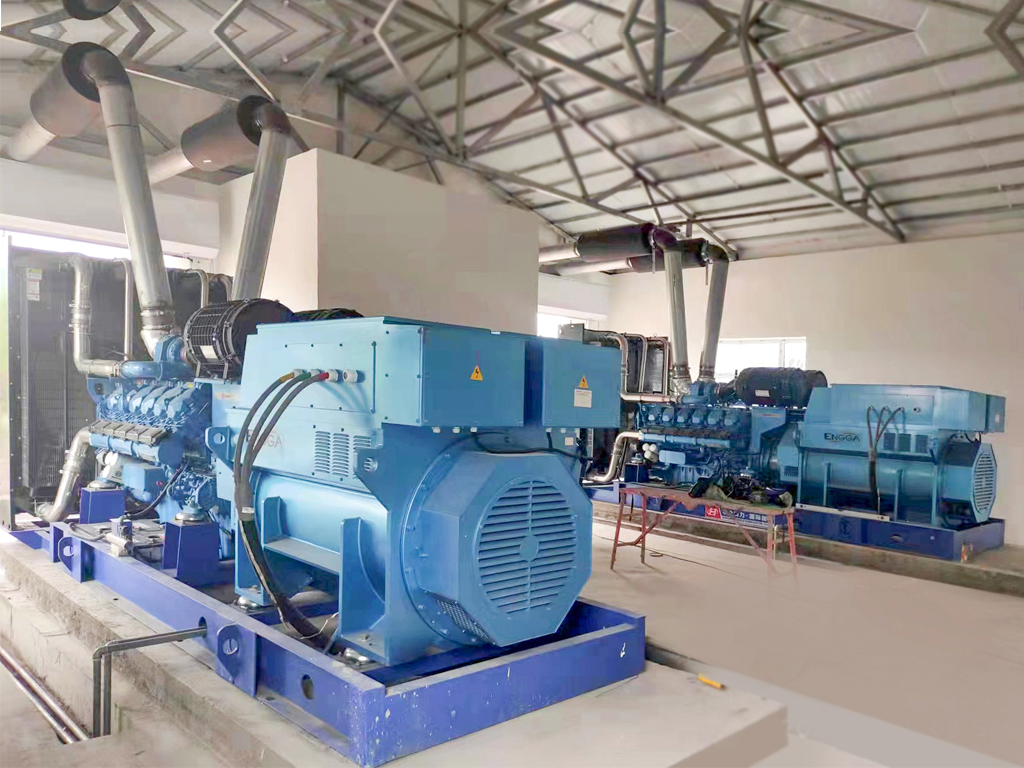

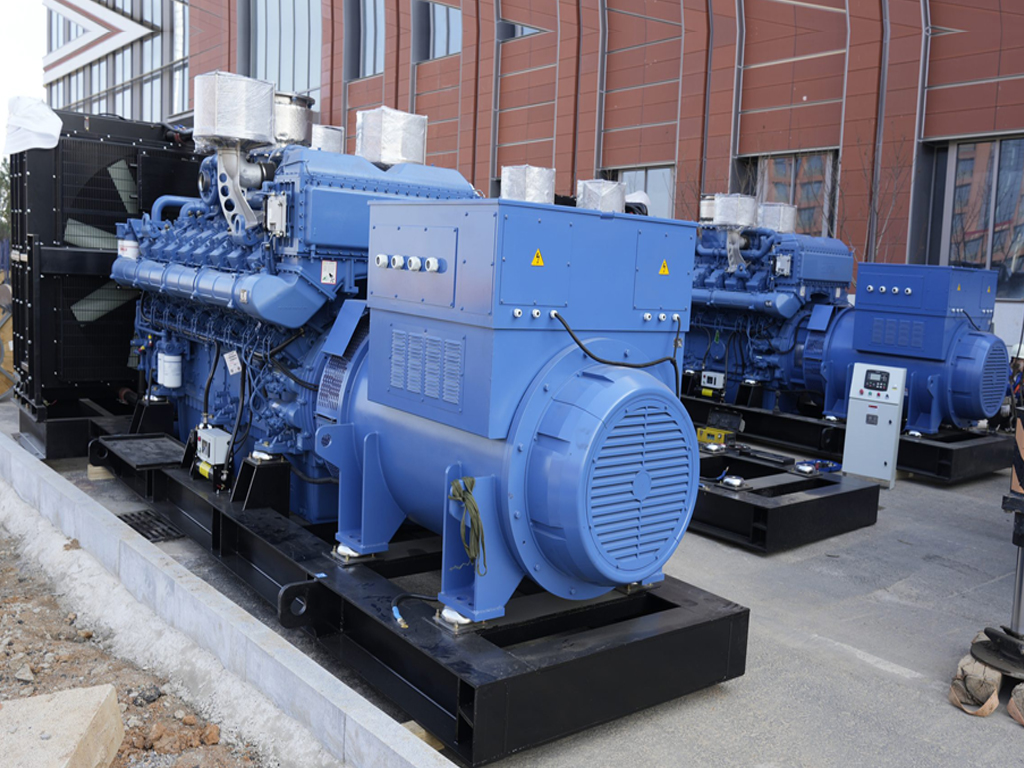

Diesel generators operate in parallel when multiple generators work in conjunction with each other to provide a system with electricity. This technique is widely used in industries, hospitals and data centres where power demand is high and reliability is essential.

Parallel operation gives load sharing among generators, which enhances efficiency and wear on individual units. It also allows for flexibility. If there is a surge in demand for power, more generators can be added. If one needs maintenance, others can keep running without interrupting the power supply.

Generators in parallel operation also result in improved fuel efficiency as generators can be operated closer to their optimum load range. However, it is necessary to properly synchronise. Voltage, frequency and phase must be the same when connecting generators together. The safe and stable parallel operation is ensured by using the correct control panels and protection systems.
